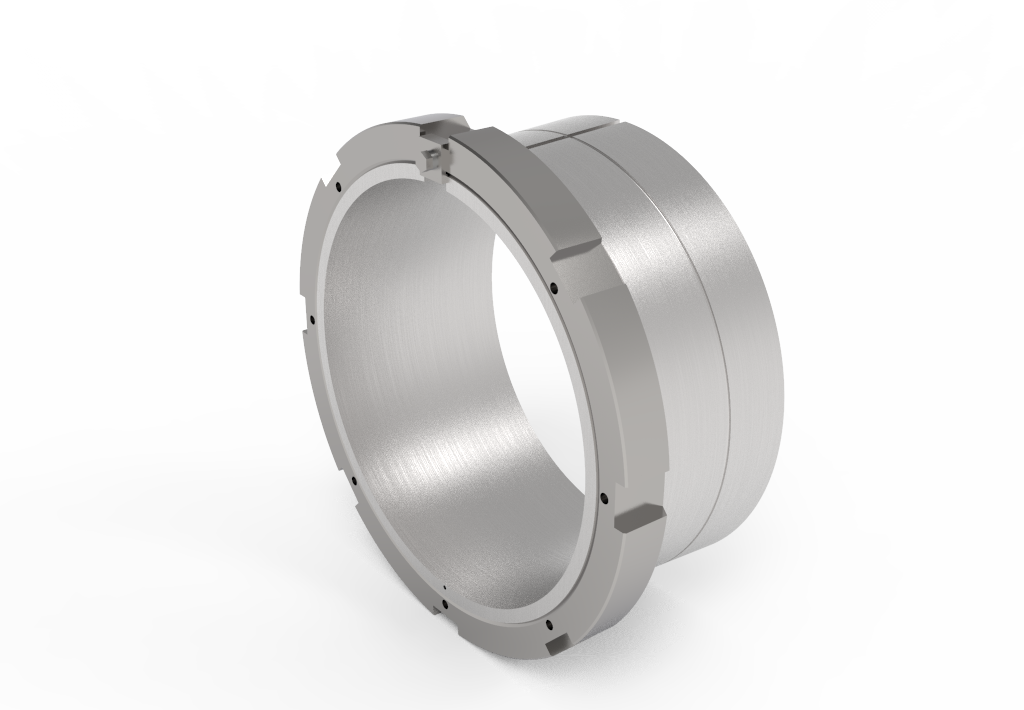

Adapter sleeve
| Adapter sleeve code | Boundary dimensions mm | Components of adapter sleeves | Bearing ID code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Adapter sleeve code | d1 | d2 | B1 | B2≈ | B3max | Adapter Sleeves | Lock nut a | Lock washer a | Locking clip | Bearing ID code |
| H241/1060 | 1000 | 1300 | 775 | 154 | A241/1060 | HM/1060 | MS/1000 | /1060 | ||
| H241/1000 | 950 | 1240 | 755 | 154 | A241/1000 | HM/1000 | MS/1000 | /1000 | ||
| H241/950 | 900 | 1170 | 715 | 154 | A241/950 | HM/950 | MS/950 | /950 | ||
| H241/900 | 850 | 1120 | 685 | 154 | A241/900 | HM/900 | MS/900 | /900 | ||
| H241/850 | 800 | 1060 | 658 | 147 | A241/850 | HM/850 | MS/850 | /850 | ||
| H241/800 | 750 | 1000 | 627 | 141 | A241/800 | HM/800 | MS/800 | /800 | ||
| H241/750 | 710 | 950 | 622 | 141 | A241/750 | HM/750 | MS/750 | /750 | ||
| H241/710 | 270 | 900 | 577 | 135 | A241/710 | HM/710 | MS/710 | /710 | ||
| H241/670 | 630 | 850 | 548 | 131 | A241/670 | HM/670 | MS/670 | /670 | ||
| H241/630 | 600 | 800 | 525 | 120 | A241/630 | HM/630 | MS/630 | /630 | ||
| H241/600 | 560 | 750 | 490 | 110 | A241/600 | HM/600 | MS/600 | /600 | ||
| H241/560 | 530 | 710 | 468 | 110 | A241/560 | HM/560 | MS/560 | /560 | ||
| H241/530 | 500 | 670 | 440 | 105 | A241/530 | HM/530 | MS/530 | /530 | ||
| H241/500 | 470 | 630 | 430 | 100 | A241/500 | HM/500 | MS/500 | /500 | ||
| H24196 | 450 | 620 | 408 | 95 | A24196 | HM96 | MS96 | 96 | ||
| H24192 | 430 | 580 | 398 | 95 | A24192 | HM92 | MS88 | 92 | ||
| H24188 | 410 | 560 | 372 | 90 | A24188 | HM88 | MS88 | 88 | ||
| H24184 | 400 | 540 | 372 | 90 | A24184 | HM84 | MS80 | 84 | ||
| H24180 | 380 | 520 | 332 | 82 | A24180 | HM80 | MS80 | 80 | ||
| H24176 | 360 | 490 | 323 | 77 | A24176 | HM76 | MS76 | 76 | ||
| H24172 | 340 | 460 | 321 | 75 | A24172 | HM72 | MS68 | 72 | ||
| H24168 | 320 | 440 | 317 | 72 | A24168 | HM68 | MS68 | 68 | ||
| H24164 | 300 | 400 | 278 | 56 | A24164 | HM64 | MS64 | 64 | ||
| H24160 | 280 | 380 | 258 | 53 | A24160 | HM60 | MS60 | 60 | ||
| H24156 | 260 | 350 | 238 | 51 | A24156 | HM56 | MS52 | 56 | ||
| H24152 | 240 | 330 | 235 | 49 | A24152 | HM52 | MS52 | 52 | ||
| H24148 | 220 | 300 | 212 | 46 | A24148 | HM48 | MS44 | 48 | ||
| H24144 | 200 | 280 | 199 | 44 | A24144 | HM44 | MS44 | 44 | ||
| H24140 | 180 | 250 | 185 | 32 | A24140 | KM40 | MB40 | 40 | ||
| H24138 | 170 | 240 | 172 | 31 | A24138 | KM38 | MB38 | 38 | ||
