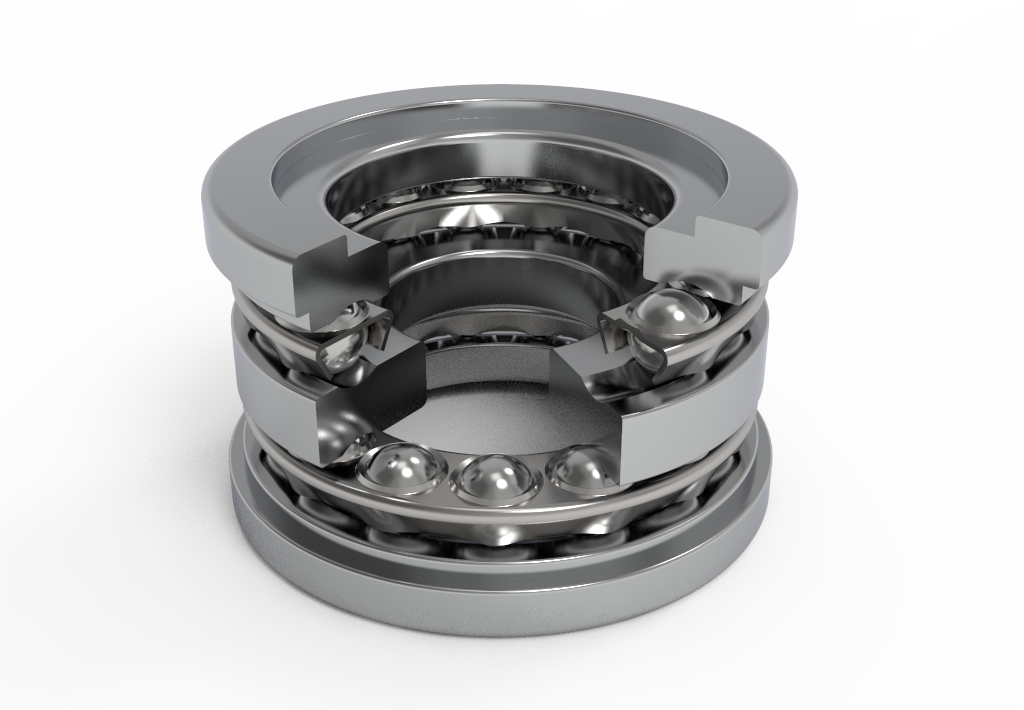

Double Direction Thrust Ball Bearings

The bidirectional thrust ball bearing includes two housing washers, a bottom bracket ring and a set of steel ball-cage. The bearing can be separated, and the shaft washer, housing washer, steel ball-cage assembly can be installed separately.The bidirectional thrust ball bearing can bear two-way axial load and be used for two-way axial positioning.

Product category

The Double Direction Thrust Ball Bearings currently produced by ZWZ can be roughly divided into the following structural types：

Thrust ball bearing with flat housing washer
Thrust ball bearing with self-aligning housing washer
Thrust ball bearing with self-aligning housing washer and self-aligning seat washer (self-aligning seat washer, if required, it needs to be customized separately)

· Thrust ball bearing with flat housing washer

· Thrust ball bearing with self-aligning housing washer

· Thrust ball bearing with self-aligning housing washer and self-aligning seat washer (self-aligning seat washer, if required, it needs to be customized separately)

Double Direction Thrust Ball Bearings

Check Reset

ID d

——

Reset Apply

OD D

——

Reset Apply

Height H

——

Reset Apply

Basic Double Direction Thrust Ball Bearings 49

Thrust Ball Bearings with aligning shim/washer 5

分类备用 0

3D graphics

2D graphics

Basic dimensions mm					Basic load ratings kN		Limit Rotational Speed r_min		Bearing part number	Other dimensions mm		Mounting dimensions mm				Weight kg
d	D	H	r_min	r_1min	Cr	Cor	Grease lubrication	Oil lubrication	Bearing part number	D1	B	damin	Damax	ramax	rbmax	Weight
570	700	90	3	1.3	292	2150	200	320	527/615F1	615	20	612	684	1	3	53.7
469.5	570	84	2	2	365	2720	230	360	52794X	499	29	493	557	2	2	39.9
300	400	80	1.8	1.3	430	3240	350	550	52768	340	18	337	388	1	1.5	21.2
170	340	192	4	2	1070	3730	430	680	52340	105	42	102	258	2	4	59.3
170	280	109	2	2	910	4110	460	720	52240	204	24	201	232	2	2	22.1
160	270	109	2	2	920	4080	500	760	52238J	194	24	191	222	2	2	20.9
160	270	109	2	2	920	4080	500	760	52238	194	24	191	222	2	2	21.4
150	300	165	3	2	835	2780	520	800	52336	184	37	180	208	2	3	48.8
150	250	98	1.5	2	760	3300	520	800	52236	183	21	180	208	2	1.5	14.3
150	250	98	1.5	2	760	3300	590	820	52236M	183	21	180	208	2	1.5	15.6
140	225	90	1.5	1.1	430	1380	600	850	52232	163	20	160	186	1	1.5	11.7
140	225	90	1.5	1.1	430	1380	700	1000	52232M	163	20	160	186	1	1.5	11.8
130	250	140	2.1	2.1	430	1020	800	1200	52330	154	31	150	176	1	2	29.4
130	250	140	2.1	2.1	430	1020	800	1200	52330M	154	31	150	176	1	2	31.2
130	215	89	1.5	1.1	425	1300	900	1400	52230	153	20	150	176	1	1.5	10.3
120	300	209	4	2	1100	2960	1000	1600	52430	154	46	151	211	2	4	70.3
120	200	81	1.5	1.1	380	1140	1300	1800	52228	143	18	143	164	1	1.5	8.37
120	200	81	1.5	1.1	365	1090	1300	1800	52228M	143	18	140	164	1	1.5	8.67
110	280	196	2	2	1020	2630	1600	2200	52428	279	44	276	197	2	2	56.8
110	190	80	1.5	1.1	230	575	2000	2500	52226M	133	18	130	156	1	1.5	8.60
100	210	123	2.1	1.1	565	1420	2300	2800	52324	123	21	120	157	1	2	17.3
100	170	68	1.1	1.1	137	430	2400	3000	52224	123	15	120	140	1	1	4.94
95	250	177	4	1.5	1380	4140	2600	3300	52424M	249	40	246	173	1.5	4	42.1
95	190	110	2	1	305	590	2700	3500	52322U	113	24	110	142	1	2	13.22
95	190	110	2	1	305	590	2700	3500	52322	113	24	110	142	1	2	12.9
95	190	110	2	1	305	590	2700	3500	52322M	113	24	110	142	1	2	13.2
95	160	67	1.1	1	170	395	2800	3700	52222	113	15	110	130	1	1	4.51
90	230	166	3	1.1	795	1800	2900	3900	52422M	113	37	110	159	1	3	33.4
85	170	97	1.5	1	276	595	3000	4000	52320	103	21	100	128	1	1	8.81
85	150	67	1.1	1	163	340	3000	4000	52220	103	15	100	120	1	1	4.05
